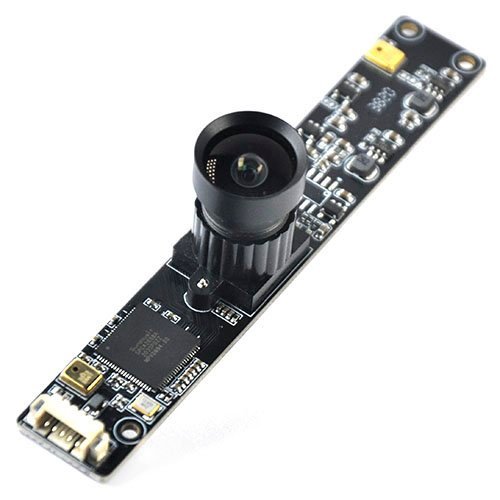

IMX317 HD 4K USB Camera Modules
Weinan Electronics these HD 4K USB camera modules adopt the 1/2.5-inch IMX317 CMOS image sensor with maximum resolution of 3840×2160 at 30fps frame rate. Low light sensitivity, autofocus, fixed focus, different FOVs, digital microphone, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.
Modules Main Parameters
- ◐ Image Sensor: 1/2.5-inch IMX317 CMOS Sensor
- ◐ Max. Resolution: 3840 H x 2160 V
- ◐ Frame Rate: 30FPS
- ◐ Pixel Size: 1.62*1.62μm
- ◐ Output Format: MJPEG, YUY2
- ◐ Audio Input: Digital Microphone
- ◐ Field of View: TBD
- ◐ Focus Mode: Autofocus, Fixed Focus, Manual Focus
- ◐ Shutter Mode: Electronic Rolling Shutter
- ◐ Output & Power Supply: High Speed USB2.0
- ◐ Parameters Controllable, Like Brightness, Contrast, Saturation, Sharpness, etc.
- ◐ UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Modules Specifications
Camera Modules Applications
Weinan Electronics camera modules have a wide range of applications like ATM machine, kiosk, automatic vending machine, robot, sanner, virtual reality, medical equipment, machinery equipment, smart TV BOX, advisement player, safety box, notebook, tablet, video door phone, on-the-spot law enforcement, simple security system, teaching system, interactive system, attendance machine, voting system, exam system, driving learning system, biological microscope, micro HD surveillance, endoscope, medical auxiliary equipment, etc.
Customization Service
Can’t find a camera module to fully meet the actual needs of your project? At Weinan Electronics, attentive customization service will definitely help you achieve reliable product vision.
Modification on Off-the-shelf Modules
If our ready made camera modules almost meet your expectations and you need it to be better tailored to your projects, you can contact us for modification.
Complete Customization
Based on our experienced and skilled R&D team, we can provide turnkey solution including mechanical design, hardware, embedded firmware, extra functions.
